UPD Series
Details
◆FEATURES

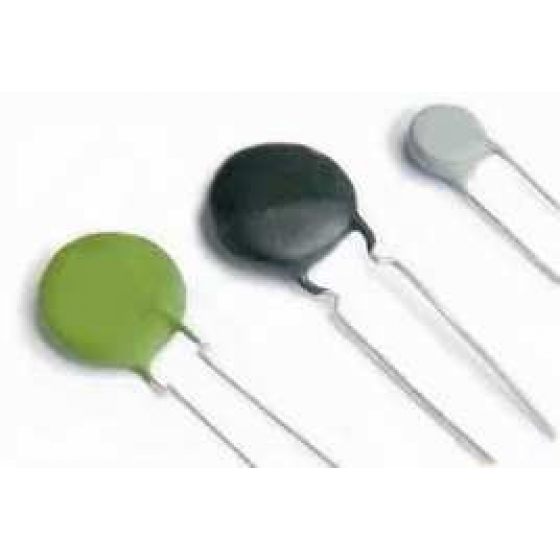

● 5mm,8mm 10mm 13 mm 15mm 20mm Epoxy coated Disc Type.
● Positive Temperature Coefficient(PTC) thermistors these Barium-Titanate-base switching.
● Type UPD Series thermistors exhibit a very large resistance increase over a specific temperature level are specially designed for color TV/monitors degaussing over-current /over-temperature protection, are suppression, motor-starter, temperature compensation and general circuits …..etc.

SPECIFICATIONS

●30V type( Max. Voltage 30V)    T: Max 4mm

Part Number Diameter
ψD Max (mm)
Curie Point  ( Int Max

At 25 ℃
(mA)
It Min
At 25
(mA)
Max Current
(A)
Resistance
At 25 ℃ ± 30%
Ω
UPDBS6300 □ □ 7 60±10 33 65 0.5 30
UPDDS6120 □ □ 10 65 130 0.5 12
UPDES68R0 □ □ 12 75 150 1 8
UPDGS65R0 □ □ 15 145 295 0.6 5
UPDJS64R0 □ □ 17 182 364 0.7 4
UPDBS8120 □ □ 7 80±10 65 130 0.5 12
UPDDS85R0 □ □ 10 135 270 0.6 5
UPDES84R0 □ □ 12 150 300 0.7 4
UPDGS82R5 □ □ 15 312 625 1.5 2.5
UPDJS81R5 □ □ 17 360 750 2 1.5
UPDBB0300 □ □ 7 35 70 0.5 30
UPDDB04R0 □ □ 10 100±10 235 470 0.7 4
UPDDB02R5 □ □ 12 355 710 1.2 2.5
UPDGB02R0 □ □ 15 360 720 1.5 2
UPDJB01R5 □ □ 17 475 950 2 1.5
UPDAB22R5 □ □ 4.5 120±10 225 450 1.5 2.5
UPDBB2100 □ □ 7 140 280 1.0 10
UPDBB24R0 □ □ 10 250 500 1.0 4
UPDEB22R5 □ □ 12 390 780 1.2 2.5
UPGEB22R0 □ □ 15 505 1010 1.5 2
UPDJB21R5 □ □ 17 520 1040 2 1.5
UPDBS6101 □ □ 7 60±10 15 30 0.3 100
UPDDS6150 □ □ 10 65 130 1.5 15
UPDES6120 □ □ 12 85 170 2 12
UPDGS69R0 □ □ 15 140 280 3 9
UPDJS66R0 □ □ 17 160 320 4 6
UPDBS8250 □ □ 7 50 110 1 25
UPDDS8100 □ □ 10 115 230 2.5 10



●80V type( Max. Voltage 80V)    T: Max 5mm

Part Number Diameter
ψD Max (mm)
Curie Point  ( Int Max

At 25 ℃
(mA)
It Min
At 25
(mA)
Max Current
(A)
Resistance
At 25 ℃ ± 30%
Ω
UPDES88R0 □ □ 12 80±10 135 270 3 8
UPDGS85R0 □ □ 15 260 520 4 5
UPDJS84R0 □ □ 17 380 560 5.5 4
UPDBB0250 □ □ 7 100±10 85 165 1 25
UPDDB0120 □ □ 10 137 275 2 12
UPDEB09R0 □ □ 12 180 365 3 9
UPDGB05R0 □ □ 15 330 580 4 5
UPDJB04R0 □ □ 17 350 780 5.5 4
UPDBB2250 □ □ 7 120±10 105 210 1 25
UPDDB2150 □ □ 10 137 275 1.5 15
UPDEB2100 □ □ 12 210 420 3 10
UPDGB25R0□ □ 15 340 680 4 5
UPDJB24R0 □ □ 17 480 960 5.5 4



●120V type( Max. Voltage 120V)   T: Max 5mm

Part Number Diameter
ψD Max (mm)
Curie Point  ( Int Max

At 25 ℃
(mA)
It Min
At 25
(mA)
Max Current
(A)
Resistance
At 25 ℃ ± 30%
Ω
UPDBS6700 □ □ 7 60±10 20 40 0.4 70
UPDDS6200 □ □ 10 62 125 0.5 20
UPDES6150 □ □ 12 85 170 1.5 15
UPDGS68R0 □ □ 15 160 320 2.2 8
UPDJS65R0 □ □ 17 225 450 4.1 5
UPDBS8300 □ □ 7 80±10 55 110 0.5 30
UPDDS8120  □ □ 10 117 235 1 12
UPDES89R0 □ □ 12 150 300 1.5 9
UPDGS85R0 □ □ 15 285 570 2.2 5
UPDJS84R0 □ □ 17 350 700 4.1 4
UPDBB0300 □ □ 7 100±10 75 150 0.5 30
UPDDB0150 □ □ 10 125 250 1 15
UPDEB0100 □ □ 12 185 370 1.5 10
UPDGB06R0 □ □ 15 330 660 2.2 6
UPDJB05R0 □ □ 17 350 700 4.1 5
UPDDB2450 □ □ 7 120±10 70 135 0.5 45
UPDDB2200 □ □ 10 130 280 1 20
UPDEB2150 □ □ 12 175 350 1.5 15
UPDGB29R0 □ □ 15 300 600 2.2 9
UPDJB27R0 □ □ 17 350 700 4.1 7




●220V type( Max. Voltage 220V)   T: Max 5mm

Part Number Diameter
ψD Max (mm)
Curie Point  ( Int Max

At 25 ℃
(mA)
It Min
At 25
(mA)
Max Current
(A)
Resistance
At 25 ℃ ± 30%
Ω
UPDBS6700 □ □ 7 60±10 25 50 0.4 70
UPDDS6300 □ □ 10 55 110 0.5 30
UPDES6200 □ □ 12 78 160 1.5 25
UPDGS6150 □ □ 15 210 220 2.2 15
UPDJS6100 □ □ 17 130 260 4.1 10
UPDBS8300 □ □ 7 80±10 50 100 0.5 30
UPDDS8150 □ □ 10 100 200 1 15
UPDES8100 □ □ 12 150 300 1.5 10
UPDGS87R0 □ □ 15 265 530 2.2 7
UPDJS85R0 □ □ 17 300 600 4.1 5
UPDBB0400 □ □ 7 100±10 60 120 0.5 40
UPDDB0200 □ □ 10 120 240 1 20
UPDEB0120 □ □ 12 180 360 1.5 12
UPDGB7R0 □ □ 15 285 570 2.2 7
UPDJB05R0 □ □ 17 100±10 350 700 4.1 5
UPDDB2600 □ □ 7 60 120 0.5 60
UPDDB2250 □ □ 10 140 280 1 25
UPDEB2190 □ □ 12 173 345 1.5 19
UPDGB28R0 □ □ 15 285 570 2.2 8
UPDJB26R0 □ □ 17 350 700 4.1 6



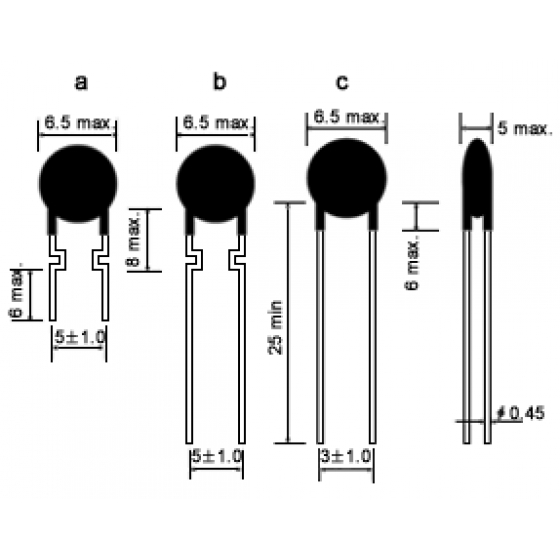

◆Order Map

Series Code Type Nominal Diameter Res. Tolerance Switching
Temperature
Resistance
At 25℃
Res. Tolerance Rated
Voltage
Wire Forming
Type

Res. Tolerance
UPD B :  5mm G : 13mm B2 220       K =±10%
Disc D :  8mm J : 15mm           L= ±15%
PTC thermistor E : 10mm K : 20mm           M =±20%
                N= ±30%
