UON Series
Details
FEATURES

●Low cost, high stability.

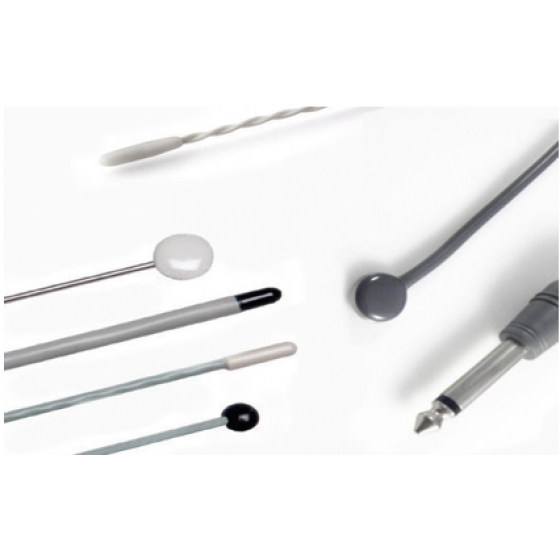

●The UON Series thermistors is a high-performance thermal sensing device.
●UON Series thermistor is similar to Chip thermistor and which is different with flexible lead-wires.
●Excellent thermal cycle endurance.
●No adjust between the control circuit and the sensor.


◆SPECIFICATIONS

Temperature rating  : -40℃ to 125℃
B value : 3100K ~ 4200K
Determined by rated zero-power : Resistance at 25℃and 85℃


Resistance value at 25℃  :

1 K ohms
2 K ohms
5 K ohms
10 K ohms
15 K ohms
47 K ohms
50 K ohms
100 K ohms


Dissipation constant          2mW/℃
Thermal time constant      Typically 15 seconds in air.
Maximum power Rating   10-15 mW at 25℃
Tolerance                            ±0.5%    ±1%   ±3%   ±5%


◆Order Map

Series Code Res. value Res. Tolerance Lead Gauge Lengths B value
UON 103 D : ±0.5 % AWG Number Exp :400: 400 mm 25℃/85℃
Temperature Sensor  at 2 5℃  10 x 10Ω F :  ±  1%
    H : ±  3%
    J  :  ±  5%
