◆FEATURES

●Suitable for narrow space.

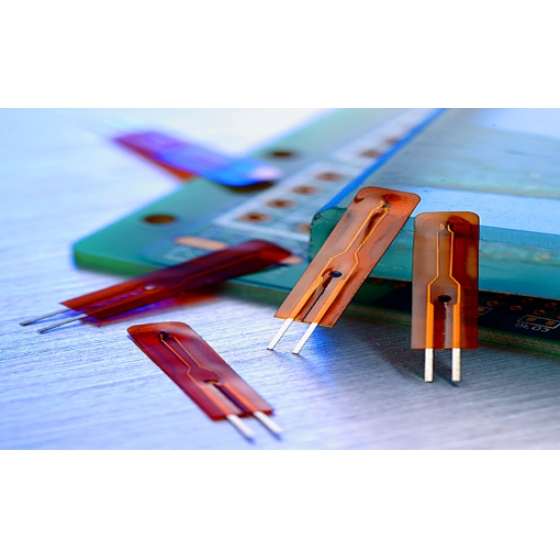

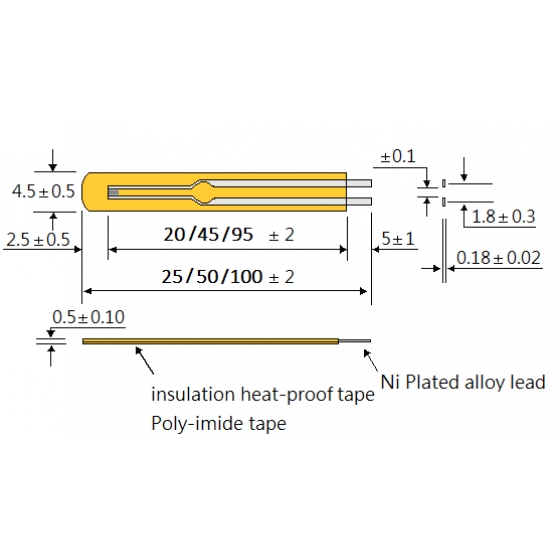

●UTJ Series thermistors feature ultra thinness of 500μm and superior electrical insulation.
●It is possible to use with safety in ambience that might contact with electrodes.
●Rapid response time.
●Elastic and solder easily


◆SPECIFICATIONS

●Temperature rating  : -40℃ to 115℃
●B value : 3435K ~ 3950K
●Determined by rated zero-power : Resistance at 25℃and 85℃

●Resistance value at 25℃  :

10,000 ohms
 50,000 ohms
100,000 ohms

Dissipation constant          0.7mW/℃
Thermal time constant      Typically 5 seconds in air.
Maximum power Rating   3.5 mW at 25℃
Tolerance                            ±1%    ±2%   ±3%   ±5%


◆Order Map


Series Code	Res. value	Res. Tolerance	Lengths
UTJ	103	F :  1%	025 :25 mm
Temperature Sensor	at 2 5℃  10 x 103 Ω	G :  2%	050: 50 mm
		H :  3%	100: 100 mm
		J :  5%
