UPL Series
Details

◆FEATURES

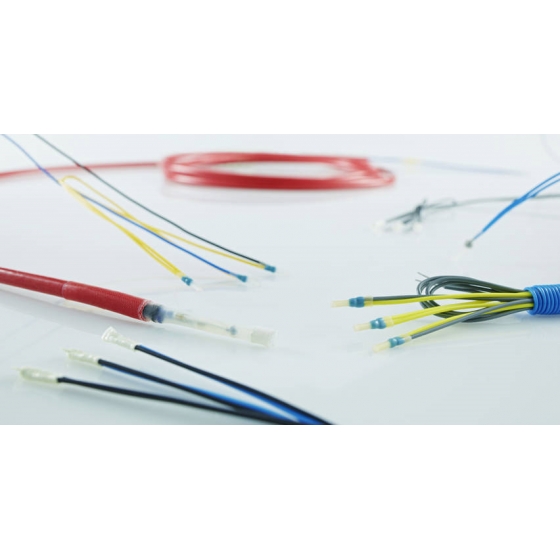

●UPL Series PTC thermistors as limit temperature sensors (Motor protection, single sensors)
●Thermistor pellet with insulating encapsulation, low-resistance type, steep R/T curve
●Extremely fast response due to small dimensions, Characteristics for sensing temperatures, RoHS-compatible


◆GENERAL TECHNICAL DATE


Max, operating voltage      (TA = 0,…40)
Max, operating voltage      (TA = -25 Tsense + 23K)
Rated resistance           (VPTC≦2.5V)
Insulating test voltage
Thermal threshold time
Operating temperature range  (V≦ Vmeas/max)
Operating temperature range  (V=V max)
V max
V meas/max
RR
Vins
ta

30
7.5
≦100
2.5
<3
-25/Tsense+23
0/+40
V DC
V DC
Ω
KV AC
s









◆COLOR CODING OF UPL Series Wire’s

T sense Color T sense Color
60
70
80
90
100
110
120
130
White/Grey
White/Brown
White/White
Green/Green
Red/Red
Brown/Brown
Grey/Grey
Blue/Blue
140
145
150
155
160
170
180
White/Blue
White/Black
Black/Black
Blue/Black
Blue//Red
White/Green
White/Red
